Waterjet Machining

Waterjet Machining -- Its Time Has Come
Waterjet machining has been around for many years, but has traditionally been viewed as a specialty process with limited applications. However, recent advances are making waterjet machining practical for applications never before considered.

The waterjet cutting machine uses a stream of water and abrasive particles, such as garnet, to perform the cutting operation. The waterjet cutter takes city water (typically 80 psi), and through the use of an intensifier-type pump, pressurizes the water to 55,000 psi. When the abrasivejet cutting head is enabled, the water flows through a 0.010-inch diameter orifice into a mixing chamber. As the waterjet stream enters the mixing chamber, it creates a partial vacuum that draws the flow of abrasive particles through the abrasive delivery line. The abrasive particles combine with the waterjet stream to create the high energy abrasivejet cutting stream. This stream exits the cutting head at a velocity of up to 3,000 feet per second. Today's waterjet cutting machines are CNC controlled for accuracy, repeatability and ease of setup.

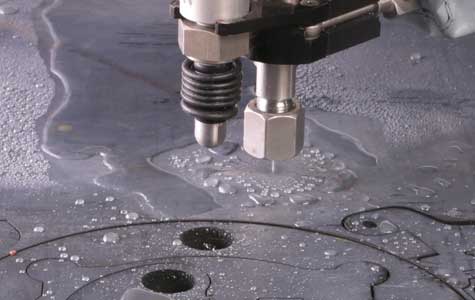

Waterjet machine
Advantages of waterjet machining:
- Cuts through any substance

- Material yield is maximized. Parts can be nested very close to each other in order to maximize material utilization. In some cases, pieces can even share the same cutting line.

- No heat-affected zones the waterjet process does not generate the same level of heat as other processes. As a result, the properties of the materials being cut do not change. The waterjet heat is concentrated so much that it literally dissipates into the chip or removed material. He adds that there will be no burn marks on parts that have been cut by the waterjet.

- No start hole is required The waterjet nozzle is placed where the cutting is to begin. The waterjet burrows its own hole through the material, eliminating the need to drill the material beforehand.

- Burr-free edge quality. The waterjet cuts with very little force, so the amount of burr generated is either very small, or non-existent.

- Eliminates secondary operations. In many cases, the need for secondary operations, such as sawing, milling or drilling can be eliminated. Etching of numbers can be done during the waterjet process, eliminating the need for a separate etching operation. In addition, because the waterjet cuts without heat, there is no need to anneal the material after machining.


Monday, October 3, 2011

3D Waterjet Cutting Technology

The Mach 4 cutting system combines a HyperJet pump, rated at 94,000 psi, with Dynamic Waterjet XD, a high-precision flat stock and 3D waterjet cutting technology. The combination is said to improve part cycle time and accuracy.

The accuracy and speed that Dynamic Waterjet applied to 2D cutting is now available for cutting bevels and 3D parts with the patented Dynamic XD. Now manufacturers can accurately cut a variety of intricate designs, often without any secondary processing.

The HyperJet pump delivers a stream of water at nearly four times the speed of sound, the company says. Increased pressure increases productivity. Waterjets equipped with HyperPressure systems running continuously at 87,000 psi cut as much as 50 percent faster while using less abrasive than conventional waterjets, the company says. Parts can be cut with a lower cost per part, and more jobs can be completed in less time.

3D Waterjet Cutting Technology
Cost-Effective Waterjet Technology
The Hydro-Jet Eco is described as a high-precision, low cost waterjet cutting system. The unit offers a compact design and cuts virtually any type of material including metal, composites, plastic and more.

Equipped with a software package for quick programming on an integrated PC control with graphical user interface, the waterjet technology features a cold-cutting process that ensures distortion free fabrication, the company says. This pure water and abrasive cutting equipment is said to ensure precise cuts without any heat-affected zone. The working area is 60 ″ × 24″ along with positioning accuracy on the X axis of ±0.001 inches per foot and Y axis of ±0.0007 inches per foot, allowing for complex cuts and small kerf widths for better material use as well as seamless nesting.

The Water cut
The waterjet features a maximum feed speed of 160 ipm with a repeatability of 0.0007 inches per foot. The unit comes with an integrated high-pressure 10-hp pump.


Monday, September 19, 2011

In Waterjet, Fast Cutting Found at Lower Pressure

In abrasive waterjet machining, does higher pump pressure translate to faster cutting?
Power is proportional to flow times pressure, he notes. As a result, “for a given electrical input power, any increase in pressure must be matched by a decrease in volume flow rate. This means that a higher-pressure pump must use a nozzle with a smaller orifice.” Thus, the 50-hp pump that would use a 0.014-inch nozzle orifice at 60,000 psi is constrained to a 0.010-inch orifice at 90,000 psi,

Water jet cutting machine
In waterjet applications in soft materials where the water alone does the cutting, a smaller-diameter jet stream might be more effective. But in abrasive waterjet applications, it’s the abrasive doing the cutting rather than the water. The water’s role is to accelerate the abrasive particles. A smaller-diameter stream “actually carries less momentum for entraining and accelerating abrasive particles than a lower pressure jet of the same horsepower

Water cutting products
Efficiency might be the better indicator of cutting performance. That is, how well motor power is converted into power at the nozzle. A direct-drive pump delivering 60,000 psi features lower efficiency losses than pumps designed to achieve higher pressure, Dr. Olsen says. This means less of the power of the motor is wasted as heat. He says a 50-hp direct-drive pump can deliver about 45 hp to the nozzle. Higher-pressure pumps potentially impose greater power losses than this. They also impose costs related to the added strain of the higher pressure on the machine’s valves, tubes and fittings. Because of all of these costs, he argues that there is significant value in discovering just how much cutting performance a 60,000-psi waterjet machine can deliver


Monday, September 12, 2011

Why Not Waterjet

Manufacturing is always looking for ways to lower its costs and increase its throughput while maintaining quality. The drivers for these continuous improvements come from customers who are themselves driven by market forces beyond their control. The impact is a general and universal acceleration of the manufacturing process--from design to delivery--across the manufacturing landscape.

In response, shops of all stripes are looking for ways to satisfy these customer-driven demands. For metalcutting shops, the search often takes them beyond the realm of what many consider traditional metalcutting technology.

Water cutting machine
Abrasive waterjet technology is one of the newer cutting systems available in today's market. They are quick, flexible and effective in meeting a wide variety of challenges among manufacturers. Years of development have resulted in improved wearability and control technology, making waterjet cutting systems competitive to other cutting methods.

Materials And Capabilities
The list of materials that a waterjet system will penetrate is significant. To date, applications have been used with foam, GIO phenolic, steel, armor plating, urethane, titanium, Kevlar, aluminum, linen phenolic, brass, neoprene, copper, stainless steel, spectra, fiberglass, corrugated cardboard, acrylic, ceramic tile, wood, rubber, glass, marble and granite.

Waterjet systems are also an attractive alternative to surface preparation. They strike a surface with such impact that coatings are instantly removed without the side effects of noxious dust that other methods may create.

The advantage of a waterjet cutting system is not limited to the wide variety of materials through which it cuts. Its effectiveness comes not only from what it does, but also from what it does not do.

Waterjet systems are an ideal process solution for cutting materials that are heat sensitive. Because it produces no HAZ (heat affected zone), waterjet is a candidate for applications where thermal induced micro-fractures or distortions are unacceptable. Waterjet's relatively cool cutting makes it temper neutral. Its cutting action will neither harden nor anneal an application material.

Environmental concerns related to the cutting of hazardous materials such as asbestos and fiberglass are reduced through the use of a waterjet cutting system. Airborne contaminants and fumes are significantly reduced or eliminated.

The erosion process of abrasive waterjet cutting creates no burring or rough edges. Often the necessity of additional finishing operations is eliminated.

There are no start holes created and parts can be optimally placed to fully utilize a piece of material. It also eliminates the distortion from compression that is created by traditional die cutting methods.

Thursday, September 8, 2011

Five-Axis Waterjet Cuts Virtually any Material

Jet Edge’s Idro line of five-axis precision waterjet cutting machines is capable of cutting virtually any material, the company says. The line is available in three sizes: 5.5 × 6.5 ft., 5.5 × 13 ft. and 6.5 × 13 ft. nominal (1,700 × 2,000 mm, 1,700 × 4,000 mm and 2,000 × 4,000 mm). All models feature the IKC five-axis waterjet cutting head, which is capable of making inclined cuts and controlling kerf to ensure optimal part quality. The cutting head features 600-degree rotation, a maximum angle of ±60 degrees and dynamic precision from ±0.2 to ±0.5 mm/ m, depending on the tilt of head.

Five-Axis Waterjet Cuts
The line’s high-precision, ground, rack-and-pinion X and Y axes, as well as its ballscrew-driven, 5.9" (150-mm) Z axis, ensure accuracy, the company says. It maintains a cutting tolerance ±0.004" (0.1 mm/m) and repeatability of ±0.001" (0.025 mm). The machine also supports a contouring and rapid feed rate of 0 to 1,575 ipm (0 to 40,000 mm/min.) Motion components are protected by steel covers with labyrinth lip seals to ensure lasting performance.

Five-Axis Waterjet Cuts
The line is equipped with programmable contact height sensing and one five-axis cutting head. A second five-axis or three-axis cutting head is also available. Other standard features include a stainless steel tank; automatic safety guards with clear windows on front and back; and a dredge conveyor for abrasive removal. Options include a rotating axis for pipe cutting, a fire jet etching system, a drill and twin shuttles. According to the company, free software updates are included for the life of the machine. The machine’s rigid, fixed, upright bridge structure can be moved out of the way for forklift or crane loading.


Monday, September 5, 2011

Waterjet In Action

The advantages that Airbus cites—faster cutting and avoiding damage to the workpiece—are among the main benefits aircraft manufacturers seek through machining composites with waterjet. Other benefits include:

- No dust. Fine dust from machining composites can infiltrate controls and other electronic equipment in the shop. It also makes the shop grimy and unappealing. With waterjet, this dust is contained and controlled. For the most part, the dust is carried away with the water, from which it can later be removed.

Waterjet In Action
- No heat-affected zone. Delamination and fiber pullout are not the only dangers of mechanical cutting. Another is heat, which might melt the matrix of CFRP. But waterjet is inherently a cool process. Heat generation is slight, and the water transports the heat away.

- No rigid clamping. An unsupported edge of a CFRP workpiece is prone to vibrate during milling. For this reason, machining of composite structures on routers or similar machines often involves elaborate tooling designed to carefully and rigidly clamp the work at every trimmed edge. Vacuum fixturing built to the precise contours of the part is common. But with abrasive waterjet, the force of cutting is slight. The force also pushes down against the support beneath the part. Therefore, while programmable workholding is sometimes used (see below), rigid custom tooling is not required.



Water cut in Action
Aircraft Equipment
That “programmable workholding” is one of various features Airbus specified to allow its waterjet machines to be adapted to the particular needs of complex aircraft parts. Work is supported atop a flexible header system consisting of an array of effectors that resembles a bed of nails. Each effector’s vertical position is set independently, so the overall array can follow the contours of the part. Changing from one part number’s positions to the programmed effector positions for a different part takes only about 2 minutes, Mr. Saberton says. This compares very well to the hours that might be required to move one custom fixture off the machine and replace it with another hard fixture. Mr. Morazo-Perez says Airbus initially questioned this approach to workholding—worrying in particular whether the flexible tooling would stand up to the water over time. The company became convinced after visiting shops using similar programmable workholding on waterjet machines in the U.S.

Other machine features particular to aircraft abrasive waterjet machining include:

- Side-fire nozzles. Aircraft skins can include small ribs and stringers that impede access. The machine’s ability to switch to a nozzle that redirects the jet to the side can be useful for cutting within these tight spaces.

- C-catcher. The contours of aircraft structures can double back upon themselves, meaning the jet of water exiting the cut might hit some other surface of the part. To prevent this, a C-shaped catcher (see photo) can intercept the exit side of the jet. A consumable inside of this device absorbs the energy of the jet so the water can be captured and reclaimed.

- Rotary spindle. As Airbus indicated, rotary-tool machining remains useful in many composites applications. In fact, certain features must be machined in this way. While waterjet can machine a hole, for example, it can’t machine a countersink. Therefore, some abrasive waterjet machines incorporate rotary spindles for such needs as this. The rotary spindle is also useful for marking tools.

Thursday, September 1, 2011

Waterjet Basics

This non-traditional application of abrasive waterjet may interest some to whom waterjet machining is an unfamiliar process, so here is a brief primer:

Abrasive waterjet machining can be thought of as a water-driven grinding process. A narrow, high-pressure jet of water carries particles of garnet abrasive at speeds ranging from 1,000 to 2,400 feet per second. This garnet does the cutting. And there are few materials, metal or non-metal, that cannot be cut in this way. In metalworking, abrasive waterjet machining often finds work cutting hard steels, aerospace alloys, and other materials that are difficult to machine through a more conventional, mechanical cutting process. However, waterjet machining also offers other advantages. One is that it's a "cool" process. Because there is no heat-affected zone, waterjet is a candidate for applications where thermal-induced micro-fractures or distortions in the part are unacceptable.

Abrasive waterjet machining - Process
This article uses "waterjet" and "abrasive waterjet" interchangeably, but it's worth noting that the terms are not necessarily synonymous in larger contexts. There is such a thing as pure waterjet cutting used outside the metalworking industry. But in the context of machining metals and other hard materials, "waterjet machining" can be assumed to mean abrasive waterjet machining, with the hard garnet particles added to the jet.



Historically, controlling a waterjet's depth of cut has been difficult. That's why waterjet machining is typically used in applications where depth of cut doesn't matter. These include applications where the jet passes all the way though the workpiece, like slotting, drilling, and machining cut-outs. Machining when the jet does not pass all the way through has traditionally been limited to "artistic" purposes, like etching and labeling.

Waterjet milling does add control over depth of cut. Thanks to this addition, waterjet cutting when the jet does not pass all the way through can be used not just for appearance effects, but also to produce features that are functional.

Wednesday, June 8, 2011

Effective For Water Jet Cutting Machines.

Water jet cutting machines has the advantage of not manufacturing mud particles. This could permit alternative close activity to require place about unlimited. Water jet cutting machines will clean surfaces to the best potential customers, provide the simple surface preparation for water jet. Water jet machines may be powered by an electrical motor or a diesel engine in usa. They will be provide as high pressure or ultra high pressure devices. Water jet cutting machines of applications they will certification is exciting. With the exception of surface preparation they will be used for cleaning tanks and vessels. They will even be used for cold cutting.

Waterjet Cutting Machine
In cold cutting a high pressure water jet is employ together with a pointy edged abrasive compound. This works well on steel and concrete in addition as on alternative materials. Very little or little heat is generated for about makes this cutting methodology terribly appropriate in cases where the same old heat generate by cutting is undesirable.

Water jet cutting machines is probably dangerous as an especially performance pressure of water is employed. For this reason operators should be properly and should wear the right safety garments and equipment. For obvious reasons the operators concern in cold cutting don't stay near the cutting jet. It's operated at a secure and remote distance.

Water jet cutting machines are helpful in remove scale from the within of pipe work. By necessity the equipment use in these cases involves the employment of tiny injection heads which will enter pipes of a tiny low diameter. As a result of pipes usually have bends, the water jets conjointly got to be versatile enough to address the changing conditions it'll encounter. This can be by necessity a remote management operation and variable speed control permits it to manage all seemingly things

Tuesday, May 31, 2011

Why Choose Water jet Cutting?

Water Jet Cutting Services – Why Choose Water jet Cutting?
Water jet cutting services are widely used in engineering and building circles to cut a variety of materials. Water jet cutting differs from laser jet cutting in several ways. Understanding these differences will aid you, as a hobbyist or a professional, to select the best suited cutting method for your specific requirements.

Waterjet cutting Machine
Waterjet cutting uses a highly pressured jet of water to cut through materials. The high level of pressure required is achieved through forcing the water through a tiny opening at pressures of up to 60,000psi.

To further enhance the cutting action, a material called garnett is added to the water to increase the abrasion.

The resulting cutting action is similar to that of water naturally cutting its way through the earth, forming river beds over thousands of years, but performed in a fast and precise way.

This is abrasive cutting' can cut through a variety of materials, and a large range of thicknesses, which is where water jet cutting holds advantages over laser jet cutting which has a limited range of materials and thicknesses on which it is effective.

The variety of materials that can be cut using a water jet include;
Metals – aluminium, brass, bronze, steel, titanium, copper, other metal alloys

Ceramics and Stone – granite, marble

Composites

Concrete

Glass - fiberglass

Plastics and rubbers – Kevlar, foam

Wood

Depending on the material, the thickness can be up to 8" thick with tolerances as little as 0.005" – 0.010".

Water jet cutting uses no heat, so it is well suited to materials that are damaged or adversely affected with the application of heat. Waterjet cutting leaves the structural integrity of materials intact, meaning it can be used on plastics, wood and other materials which cannot be cut using a laser cutter.

Selecting the right cutter for your engineering or building project can save you money, time and the expense of having to replace a sheet or length of building material because of an imprecise cut.

Tuesday, May 24, 2011

Waterjet cutting glass

Cutting Glass
Although glass is a brittle material, it can be cut using an abrasive waterjet and the results can be quite stunning. Most glass cutting is done for artistic purposes.

There are a few main items to consider when cutting glass:
- Quality of glass
- Abrasive and water delivery
- Support of the glass
- Design of the part



Quality of glass
Some types of glass cut much easier than other types of glass. Generally speaking, higher quality glass that is thicker tends to be easier to cut than low quality glass or thin glass. The manner in which the glass was cooled at the factory affects the temper and how brittle and how difficult it is to cut later on, and some of the cheaper glass is not as good.



Tempered glass is impossible to cut with a waterjet, as the glass is under stress. When you begin cutting it, tempered glass will shatter into many small fragments.

Tuesday, May 17, 2011

Cutting Titanium with Water Jet

Waterjet cutting titanium
Water jet cutting is a recent innovation in cutting titanium. A high speed jet containing entrained abrasive is very effective for high cutting speeds and for producing smooth burr-free edges. Sections up to three inches have been cut and the process is relatively unaffected by differences in hardness of the titanium workpiece.






Titanium can be economically machined on a routine production basis if shop procedures are set up to allow for the physical characteristics common to the metal. The factors which must be given consideration are not complex, but they are vital to successfully machining titanium.

The different grades of titanium, i.e., commercially pure and various alloys, do not have identical machining characteristics, any more than all steels, or all aluminum grades have identical characteristics. Like stainless steel, the low thermal conductivity of titanium inhibits dissipation of heat within the workpiece itself, thus requiring proper application of coolants.

Tuesday, April 5, 2011

What kinds of materials can be waterjet cut

What kinds of materials can be cut with a waterjet?
A waterjet cutting machine can cut both hard and soft materials. Soft materials are cut with water only, while hard materials require a stream of water mixed with fine grains of abrasive garnet. Materials including, titanium, stainless steel, aluminum, exotic alloys, composites, stone, marble, floor tile, glass, automotive headliners and door panels, gasket, foam, rubber, insulation, textile, and many more.

Waterjet cutting material

Will waterjet cut any material? What are its limitations?
There are some types of materials that are typically not good for the Water Jet Applications. Depending on the end use, wood is often a poor application, due to its fibers' absorption of water, which causes them to splay and become rough. Many fabrics do not cut well, as the fibers "squirm" out from under the cutting stream, rather than remain in place during the cutting process.

A few materials require the waterjet to cut through one layer, cross a void, then cut through another layer does not produce desirable results. The cutting stream does not remain cohesive after cutting through the upper layer, causing a poor edge quality on the next layer.


Sunday, April 3, 2011

Advantages to Waterjet Cutting Machine

Advantages of Waterjet cutting
Waterjet cutting has many applications, and there are many reasons why waterjet cutting is preferable over other cutting methods. Listed below are several advantages, along with a brief explanation.

- In waterjet cutting, there is no heat generated. This is especially useful for cutting tool steel and other metals where excessive heat may change the properties of the material.

Advantage Waterjet Cutting Machine
- Unlike machining or grinding, waterjet cutting does not produce any dust or particles that are harmful if inhaled.
The kerf width in waterjet cutting is very small, and very little material is wasted.

- Waterjet cutting can be easily used to produce prototype parts very efficiently. An operator can program the dimensions of the part into the control station, and the waterjet will cut the part out exactly as programmed. This is much faster and cheaper than drawing detailed prints of a part and then having a machinist cut the part out.

- Waterjet cutting can be easily automated for production use.

- Waterjet cutting does not leave a burr or a rough edge, and eliminates other machining operations such as finish sanding and grinding.

- Waterjets are much lighter than equivalent laser cutters, and when mounted on an automated robot. This reduces the problems of accelerating and decelerating the robot head, as well as taking less energy.

Thursday, March 31, 2011

Disadvantages of waterjet cutting method

Among the methods of cutting are cut waterjet is a process used to machine the most useful that can be replaced easily for how to cut a lot more but it has some limitations to what Steve. It can be cut million profiles. And for those who trade on the waterjet metal cutting industry, it is necessary to realize these restrictions listed below are some points that will give a brief description of each.

Waterjet Cutting Machine
1. By using a metal cutting waterjet only a limited number of materials can be cut economic. It is one of the two main items of waterjet cutting. While it is possible to cut tool steel and other hard materials, cutting rates will drop dramatically and the time to cut the part may be very long. For this reason, waterjet cutting can be very expensive and valuable than other benefits offered.

2. One disadvantage more of how to cut water jet is that it is impossible to cut very thick, with a waterjet cut may be a problem in maintaining the correct dimensions of the metal to be cut If the part is too thick jet may spread to other parts and made it on the diagonal or cut steel to be cut more than at the bottom of the top It can also cause waves on the surface of the cutting chain.

3. taper is also a problem with the waterjet to cut very thick material. Slender steel is cut off from the aircraft when part of a different angle than it goes into a part and can cause incorrect dimensions. The deceleration of the head may reduce this. But it is still a problem.

Wednesday, March 30, 2011

Why used Waterjet Cutting Machine

What's Natural Cutting?
It is a way to cut that does not use harsh chemicals, high heat or cause any toxic fumes waterjet cutting is environmentally friendly and costs more effectively. Cut is very clean and precise. It uses all natural products for cutting. Just water and sand under high pressure. A needle sharp stream of abrasive water does the precision cutting.


Waterjet Cutting Machine
Why Use Waterjet Cutting?
- No heat, warping, or material discoloration.

- Capable of cutting complex & difficult shapes.

- Cut materials that lasers can not.

- Smooth finish without the burr.

- No material limitations. Cut just about any material.

- No costly dies or fixtures required.

- Easily cut materials as soft as foam or hard as rock.

- No thermal stress put on material. Excellent for aerospace materials.

- Cleaner cutting alternative to plasma cutting and flame cutting.

- Time reduction compare to laser cutting. Material can be stacked and cut.

- Can cut materials as thick as 12 inches.

- Fast turn-around.

Tuesday, March 29, 2011

New software can help processors using waterjet technology

Adjust the angle of their high pressure streams to make cuts in products not possible before, according to the developer.
Technology Cutting Water Jet is one of the fastest growing process equipment the world's largest because of the versatility of it and ease of operation, cutting and portioning of food is one of the active theearliest waterjet.

Processor technology has advantages over other methods of cutting sanitation due to lack of mechanical transfer of bacteria from food in the diet or from tools to food There is also a definition of downtimefor not have a knife. Security operators will be better because of the waterjet can control the robot remotely.



Flow master software - Waterjet cutting
International said the flow FlowMaster 6.0 software can increase the speed of cutting water jet up to 35 percent software also allows users to cut the thickness varies by a variety of angles awider.

"With software innovation, the flow of water jet cutting is not only limited to the plane XY, and can design and cut parts does not always think that the waterjet. varyingheight. And thickness, "said Robert Peterson, marketing manager for waterjet for companies listed also FlowMaster 6.0 will help customers lower cost per inch in the project through the ability of thesoftware to increase cutting speed. and thickness. "

Software also allows the blade to the perspectives and directions in three dimensions, which makes them set waterjet cutting of them more easily. Software that allows the processor to cut the corner speedfor optimization to reduce cycle time.

Software also saves time by automatically calculated. Does not require operators to stop and to calculate and adjust their settings are This allows the processor to reduce the step ofoperational. Number and increased productivity.

Thursday, March 24, 2011

CNC Water Jet Cutting

The CNC Water Jet Cutting For A Perfect Piece Of Metal
If you are looking for ways to cut steel with the need to adjust something, then dive CNC cut accuracy of iron is the right option of you as this is known as a way to cut a desirable lot. best known. This is suitable for cutting as well as some metals can not be cut by the end of school will not let you have heat affected zones. They are cheaper than any other laser cutting systems, which makes it an ideal solution for cutting metal or steel industry.

CNC Water Cutting
This item has an addition of some abrasive that is widened for the range of the cuts that this system can perform, but do this in many cases the largest component of the cost of this cut-off.

For you to set off the high cost of Abrasives used to help reduce interior water supplies, and new systems have been developed, which helps better control the amount of that conflict, waste disposal, it also controls. Flow smoothly. Higher management quality abrasive cut with water to make a huge step up even more to deal with.

Industrial Steel cut water has been designed for the many challenges in the metalworking industry for such things as the thickness of the metal, shape, strength, design, and when it is cut on the axis, will not be any problems for water this cut-off.

The producer can create and also create a turn key water jet cutting system for you to use for your applications.

When cutting with this device that is responsible for so much more easier for many shop owners and stone tiles, aerospace, cutting traditional and non-automotive manufacturing. Types of systems for metal cutting and metal is known to be very flexible and fast and accurate.

Tuesday, March 22, 2011

Metal Cutting by Waterjet Fabrication

Metal Cutting by Waterjet Fabrication
Water jet cutting machine tools, can be rigid or metal cutting other hard materials using a powerful jet of water at high speed. Sometimes the water will be replaced by a combination of water and substances, some fragmentary This technique is often used in the manufacture or production of machine parts and equipment Heavy others, this technique is very useful and highly used in industries such as manufacturing equipment, automotive, mining and results of artificial metal others because it will be useful for the lifecycle of the importance of cutting, carving, and reaming Blade power consumption of these high-pressure water to create a more effective force to the object pieces. Cutting machine waterjet pressurizes the flow of rain water to reduce the variety of materials such as foam, rubber, plastic and wood. Polished blade jet balls against the tides run to cut hard objects.



Waterjet - Metal cutting
Water jet cutting is a good idea into a green technology because it does not produce harmful air and water do not cause environmental pollution. Most of the pieces of scrap can be reused sliced ​​off diving techniques to get the error by using the traditional techniques of cutting and custom. Consumption of water in the knife Water jet is very low and the water used to cut one day, can be used again by recycling, using closed-loop structure. In general, water, clean enough, or you can filter it, and allow to drain. Use a dark red polish is all harmless, because it is a natural material and non-toxic in nature and can be reused after recycling of other benefits of waterjet cutting is that you get rid of dust in the air. produced by traditional methods of cutting. This feature will seriously improve the working environment and reduce the potential exposure of workers to environmental contamination.

Sunday, March 20, 2011

Waterjet cutting machine

Waterjet cutting can cut metal. Sounds impossible. But true. Diving off the process of cutting sheet metal with a high pressure stream of water containing some abrasive particles can dive off the output of any 2-D shapes from sheet metal. It can cut any metal sheet between the thickness of 0.001 "to 4 ".

CNC water jet cutting is the computer mediated water jet cutting process. In this regard, the user has to draw the design sheet metal must be cut, and software for cutting water jet CNC as follows: to cut sheet metal to shape unique CNC cut diving is advantageous as it did not leave. Any heat in the process of being cut off which may distort the sheet metal. It cuts smooth edges and any other reason, not the end, deburring to even be identified.




Friday, March 18, 2011

Maintenance of Water Jet Systems

Maintenance Waterjet cutting machine
As with any piece of equipment used in industry, waterjet cutting to maintain a regular basis to work at maximum efficiency. Maintenance can range from scuba diving off everyday tasks such as switching components injected with weekly or monthly, such as replacement of the pump. Primers, following in the maintenance of the water jet cutting.

Maintenance Waterjet cutting
- Frequency of maintenance is mainly based on the quality of water and pressure to which equipment is operated. Higher pressure and dirty water, or both, to make parts hard to break down more often. On the other hand, the water will help reduce downtime and frequency of maintenance.

- When replacing or repairing parts, be sure to clean them thoroughly before reassembling information-even a bit of dust and dirt can be a disaster jet and put more strain on the tube and mixed with other



- Run the machine at the lowest pressure possible to reduce the stress on the metal pipe. Although water will eventually have to change, lifetime can be extended significantly through the control of even low pressure. For applications such as cutting food that is not used contrary to this may be easier to use, such as glass or metal cutting.

- Fix leaks as soon as possible. Leak and cause corrosion of parts, they wear more quickly.

- Check regularly to prevent the cutting head does not put the point to begin to reduce fluctuations in the size It is also useful to log the number of hours in the cutting head and monitors performance to hours accumulated.

- Check for mixed obstruction especially if it is used for abrasive cutting process, such as granite.

- Replace the filter in the injection water as needed to maintain water quality.

- Check water pump, if possible diagnostic software. Pump is the heart of the jet cutting system and can cause a significant interruption in case of failure.

With regular care, maintenance, operators can take off and protect the best interests of this multi-purpose cutting.

Thursday, March 17, 2011

advantage of A CNC Waterjet cutter

Taking advantage of A CNC Waterjet cutter For Preciseness Metal Parts Production
Water jet cutting is a leading real wonder of technology and the use of waterjet cutting CNC to precision manufacturing of metal parts is not only 'green' than most alternative methods. But still less expensive. But there are advantages mentioned above, how to cut materials with diving is just as valid and reliable method and a variety of other uses, in fact even more so.

One very comfortable in the water for a cut in the course of this action does not modify the structure of the material being cut due to lack of good heat exchange that occurs in other methods, results. Reduce heat to permit materials being cut without changing the properties of This is important when cutting materials such as plastic or acrylic. But also the precision metal parts.

Waterjet cutting machine




Waterjet is incredibly accurate, the ability to cut to the error in their 0005-inch stream of water velocity and pressure. Sometimes the use of water alone, and sometimes, depending on the contrary, mixed with water works in progress. Contrary to generally as well as garnet and aluminum oxide in the form of gravel. Gravel will be collected and reused, which is one factor in making the form of disabled friendly environment this Relatively small amounts of water and may be collected and reused, or through a filter and washed down the drain.

CNC stands for computer numeric control with the operation of the waterjet cutting most accurate and fairly automatic to manual. Appropriate equipment and computer software programs can cut almost any metal a few exceptions relating to diamonds, ceramics and some glass

Using CNC Cutting diving for accuracy metal parts have become very popular in industrial utilizations other than cutting, including coring, trimming and carving Procedure is versatile and is used in areas from agriculture to military.

Waterjet Cutting and waterjet technology qualities

Water jet cutting energy use of natural water and polished, refined to cut shapes and design elements, including metal, stone, marble, wood and glass more waterjet cutting is safest way to. and the most effective as well. In this way, the result is very satisfactory and at the same time cost effective as well. With costly, hidden or not attached to how to get the forces quickly and is very popular for eco-friendly way. Method has proven itself time and time again that it has the ability to do things that are not like other technologies.

Technology of Waterjet
Water jet cutting does not release harmful gases or toxic substance and the process is known as a cool show that is not harmful to the environment. Process involves spraying water from a nozzle at high pressure and the power of water pressure to get the results you want. Meanwhile, the waterjet cutting is a computer-controlled design can be scanned and can be cut. You need to feed the design of computers and software programs to read and work accordingly. Whether it is complex or simple steps to reduce the ability to finish the job that is perfect.

Process of waterjet cutting to reduce the sort of tampering, or impair the component will not harm any material and will help shape a perfect without quality loss. If you want to experience error-free perfect way for waterjet cutting all of you, to create and design to use waterjet technology benefits and advantages, and benefits no other methods can provide.

Process of waterjet cutting is the ability to reduce the thickness of a single or multi-layer edge quality and blurs also eliminate the need for decoration materials. It also helps in the design, floorings, wall mirrors and marble floors and floor to create inlays on the border, the complex design of the thickness required of any process, no heat of any and eliminate the chance of distorting any. It is inexpensive and very effective and used for industry, trade and other industries.

Tuesday, March 15, 2011

Glass cutting

Glass works
Glass and equipment for the processing of it gradually improved during the development of industry Glass cutting technology improved as well.

If we look back at 30 years, we can see that these technologies are not perfect for Today at the glass are processed and cut down many times over. Of course, if we consider the industrial robot - made a computer program - to control machinery, which is engaged in cutting, cutting glass now be implemented in different forms. For example, a method of waterjet cutting and sandblasting.

Waterjet Cutting Glass
In the way of waterjet cutting glass is cut by a stream of abrasive fluid thickness of hair. This method is unique because it is possible to do both through the holes in the glass that will not affect the strength of a glass or a number of different prior to the computer. Such glasses can be used not only in the later. But in art to decorate with - such as stained glass windows.



How to cut this advantage. For example, the temperature in the low cut - this will occur because of heat produced when cutting glass has been absorbed almost immediately with water. Therefore, technology waterjet cutting glass to avoid the heat. Low temperatures in the glass cutting reduces the chance of deformation of the material melting or burning of the surrounding area. Water jet cutting to remove the need to process any of the edges of the glass area because of the impact of cooling on the edge of the missing parts machined.

Monday, March 14, 2011

Waterjet Cutting Applications in Glass and Food Cutting

Water jet cutting is emerging as a way to cut popular among various industries, including glass cutting, as well as food processing. While this method effective for cutting all materials. But they are very effective in the abovementioned Read on to learn more about the advantages of this method, G-friendly economic environment and cut



Waterjet cutting glass
Water jet cutting glass industry.
Cutting glass is a very complex way. One wrong turn here and there, the pressure will be wrong and broken glass pieces without leaving you with no choice but throw it away. Well, this is where the waterjet cutting technology appears as a savior Technology that is used as a source of energy will help you in the right style and shape, without much extra unwanted break. This is likely to succeed because of the waterjet allows you to adjust the pressure which is only appropriate to start cutting. Most cut-glass experts today Olivine in a conflict with water This is ideal to provide great results without any chips and cracks such as the edges and smooth finish. However, it is to be mentioned here that it is not suitable for cutting the hot glass.




Water jet cutting in food production.
Food processing industry makes extensive use of technology in waterjet cutting their factories. This approach has particular advantages in this industry that they do not infect or contaminate food, and also very economical when compared with other methods such as cutting with a knife, etc. In fact this. Since several years ago for cutting efficiency of the machine to eat like pizza, cake, chocolate bars, meat, fish, potato chips and frozen foods, among many others in addition to health reasons and other. used in the food industry that it is a process that uses cold water only and hence not hot or they have been exposed to chemicals that are harmful to health.

Where to get waterjet cutting services.
Online destination is a good option for finding quality waterjet cutting services. Most of these groups online registration with experience in the field of their own and thus meet the specific needs of you to cut water jet used for cutting you need to be treated in the quality. and to get value for every expenditure. High-speed cutting is just as easy today with a waterjet.

Sunday, March 13, 2011

Water Jet Cutting : Stone Cutting

Water Jet Cutting : Stone Cutting
The water jet cutting system, cutting stone or device may be one of the top innovations in technology stone cutting machine It started out as a very expensive way for rock cutting. But because of the piecemeal sale of equipment and services to increase the cut is actually inexpensive, and in many situations may help you save money.
Cut waterjet system can be used in many ways one way is to design the shape specific to the high cost as much or as it is impossible to do with other machines such as CNC, such as design capabilities are. made of wireless technology this limit is true. But in many cases, the resistance of the stone as the greatest constraint.
Use of stone in the engineering design, diving off a great asset; Resistance is high when compared with any natural stone anyone who has been working with stoneware products bear really knows you can actually cut 2 m 2 cm x 2 cm units, with good resistance to up the rock. especially the most natural marble or limestone only lift items that are long and thin to destroy it.



Waterjet cutting stone
The use of water jet cutting in the business of cut stone was seen as a potentially very But for normal day to day cut diamond disk is more cost effective to cut machine manufacturer has created a cutting rock hybrid that is both cutting discs and waterjet cutting off. Using these hybrid can really reduce the material loss, and if we are cut crystal countertops, savings are enormous.

Tuesday, March 1, 2011

On the Cutting Edge -- Waterjet Cutting Tools

On the Cutting Edge -- Waterjet Cutting Tools
From fuselages and wings, to the fenders of a Chevrolet Corvette, to armor panels on military vehicles, composite materials are showing up with greater frequency in a wide range of applications.

But cutting and trimming the composite will not be easy. Material is susceptible to oxidation and degradation from overheating. Carbon fiber is not good because they break off instead of cutting smoothly.

waterjet cutting machine
It is mainly the reason that waterjet cutting is emerging as one of the fastest equipment, today this growth. Grown accurate as technology and offer a non-contact cutting, waterjet cutting has spread from the aviation and aerospace and defense to electronics stores and stone work and tile industry.



"Waterjet machine to benefit the most, without regard to what it's cut is that it does not contact methods contrast with the absence of heat," Dick LeBlanc, executive vice president of technology manufacturing waterjet International. Flow International said. "You can go to some metal machine with very thick, and abrasive waterjet does not change the metal material It was a cutting cold.

Friday, February 25, 2011

What is Waterjet Cutter

Waterjet cutting machine device that is designed to merge with the plane of the water. Water Jet cutter can handle a variety of materials, and they will benefit some differences when compared with other types of cutting tools, many companies blade waterjet cutter can be purchased or leased and the number of companies. The blades of these settings for various industries such as manufacturing custom parts.

Early end of Waterjet Cutter was developed in the 1950 and works by creating a plane of water, high-speed to high pressure in the 1970s, made aware that the performance of cutting black water may increase substantially. by adding abrasive materials such as garnet powder to the water stream. Modern diving knife can handle material thickness and high density, such as brick



Waterjet cutter
Basically, I like diving off erosion on steroids with the ability to more accurately match the direction of the erosion. Blade can be applied to a variety of cutting precision, which may be difficult with other devices, they also environmentally friendly because they do not create pollution, and many models are designed to recycle water and water mixed. Abrasives, which helps to reduce waste and lower costs for the operation.

Wednesday, February 23, 2011

Guide to water jet cutting machine

Water jet cutting machine
Water jet cutting technology may be something you are considering for your manufacturing operation. A water jet cutting machine can slice into just about anything using a jet of water at extremely high speed. A waterjet cuts softer materials, while an abrasive water jet machine is used for harder products. Due to its versatility when it comes to cutting many different products, a water jet cutting has many uses.






If your company needs to cut metals, foam, rubber, composites or plastics, hydro cutting allows you to cut material up to six inches thick. Water jet cutting doesn’t produce heat like a saw or laser, so you can cut without any effect on the material itself. Abrasive water jet cutting is also commonly used to make precise cuts on tile or stone to reduce wasted material. A waterjet can accurately cut holes, curves and intricate designs in tile inlays. A few of the unique benefits of water jet cutting are

1. More versatility in cutting a range of hard and soft materials;

2. The ability to stack materials up to a thickness of six inches for faster cutting on large projects;

3. And a cleaner finish means less work on the edge after the water jet cuts it.

Tuesday, February 22, 2011

How Waterjet Tools Work

Waterjet cutting tool works
Waterjet cutting is a tool that is used in machine shops cut metal with a very high-pressure stream of water. It is exciting to be a voice for ordinary people who - imagine the water cut through steel - that is something that waterjet technology is not accurate and effective.

In essence, water, dirt, high-powered vehicle used to clear the "cut" out of your car. But with the waterjet engine, power is about 30 times the car washing machine car wash in your country. In fact, water pressure is usually between 20,000 and £ 55,000 per square inch (PSI).

Waterjet Cutting works
Water jet cutting is the ability to spray because it is channeled through nozzles bejeweled very narrow at high pressure to spray on. Water is forced through a 0.010 "to 0.015" diameter hole in the gem.

Type of Water Jet.
Waterjet waterjet pure and contrary: There are two types of waterjet is. Water Jet Cutting Water Purification how old The first commercial deployment of these waterjet for cutting trees in the '70s much more like for paperboard. As the name suggests this method only with water. Water jet cutting is often used to weaken the material, while the mixture of water erosion for the more difficult.

In abrasive waterjet stream of water, wear particle accelerator, which is corrosive material being cut. Incoming materials in order to solve the problems of wear, including suspension or polished stone such as garnet and aluminum oxide.

Sunday, February 20, 2011

Waterjet Cutting VS Laser cutting

When it comes to laser cutting, water jet cutting with a lot of discussion. The fact of the matter is that both options have benefits, the level of their own that they can offer users. But with that being said, you need to know which one is best for you before you start any work if you do not, you may end up with average or below pay more than you need. To avoid this problem, know the benefits of both how the cut will save time in the long term.

As a general rule of thumb, if both laser and diving work that you will need to use laser cutting technology. Are really two main benefits of laser cutting technology to make it more popular.

The first and most important laser profile, you will be able to work much faster than by any other means this is important in market segments such as automotive or aerospace are some of the Laser cutting has become an integral part of large projects. Typically, parts will be made available to build a prototype or the purpose of proofing tools, while mass production is still being designed. This means that the last bus or plane to the market much sooner and in a short period of time it takes to recover development costs.

And along with saving the time of the laser cutting elements will be ready for service immediately. Not necessarily through the tedious process of cleaning after the cut is not complete. Most laser cutting quality, such as those made by TRUMPF allow operators to change the gas pressure and cutting speed to ensure a near complete success.

Other key benefits of the laser profile is that it has reduced accuracy. Due to the very narrow cutting width, you will not have to worry about is not what you want. Details of the work can be done with accuracy thanks to a small decrease is 0.1 mm, which means that the laser profile that is suitable for many different uses such as for furniture or sculpture complex.

Finally, it was thought that laser cutting is a clean cut every way. For customers, this means that they do not run the risk that parts of them have been damaged or affected by the waste involved in cutting dive

As you can see the benefits that go along with how to cut this This is not to say that there's always laser cutting the best option. But for most people this is the way to go. If you do not have the necessary equipment to get the job that you can often turn to the laser cutting experts to lend some assistance. The way you work professionally with you to complete the work and counseling procedures work best.

Sunday, February 13, 2011

Water jet Machining

Waterjet cutting machine
Water Jet Machining (WJM) called hydrodynamic or equipment may be used for applications similar to the laser. Connection, except the obvious reasons.

Water jet machine widely used for cutting plastic, cloth, rubber, paper and leather, because of the lack of heat it produces kerf very narrow, and if set up correctly produce very smooth edges no scraps or burrs Water jet machine is a very clean job with no dust or noise, odor and very little, in fact, the health and safety and environmental impact is minimal, almost.

Abrasive Waterjet Cutting
Nozzles can be installed in multi-axis robotic arm cutting complex shapes in three-dimensional reality, this setting has been employed successfully in car dashboards, cut out foam laminate.

To cut it harder and more resistant materials such as metals, abrasive particles such as garnet or alumina is added to water prior to entering the cutting zone. This is called a water polishing Jet Machining (AWJ).

Pressure up to about 1400 MPa 400 MPa even more than usual for the effective functioning abrasive solution is forced through into the head between 0.05mm and 1mm diameter at a rate of 0.5 liter to 25. liters per minute, which resulted in jet speed in the region from 520 to 914 meters per second. This serves as the blade, eroding many materials quickly In fact, due to the continuous change contrary to the cutting edge, fresh particles tend to be presented to the workpiece, so they are not dull or stiff but flexible material being cut.

the nozzle orifices of the materials made generally very difficult to man-made Ruby and Sapphire, as well as carbide composites are used currently in use.

Similar to the laser to cut the maximum thickness of a majority interest in the area of 25 mm

Saturday, February 12, 2011

Waterjet Systems Easier To Operate

Waterjet Systems Easier To Operate
The continued demand for works of art waterjet to be included as standard with the installation of floor and produce results in a rapidly changing industry. Although the art waterjet is often haunted by several factors, some of the technological advances that are changing.

Art cut
The possibility of scanning images, and there are waterjet cutting, rapid design and management are essential to realize the problem quite naturally. In fact, no scan, clean and ready for conversion to arcs and lines, the form required for cutting purposes. The ability to avoid the tedious cleaning work in the scanned image will be reduced when the artwork is original is not good quality.

Waterjet Machine
The good news is that help comes. Software has been developed to assist in converting scanned images into a format that is ready for cutting necessary. Some manufacturers have software options such as local waterjet their Choosing this option can reduce the setup time for operators waterjet.

Operations.
Barriers for others to use the waterjet can be used in large applications that need to scan images. Control lots of memories that are very small, with only the ability to run smaller than the program less complex. Controls are good for applications in engineering. But art is complicated. intrinsically. In the form of a curve and a small number of very large files result in very
